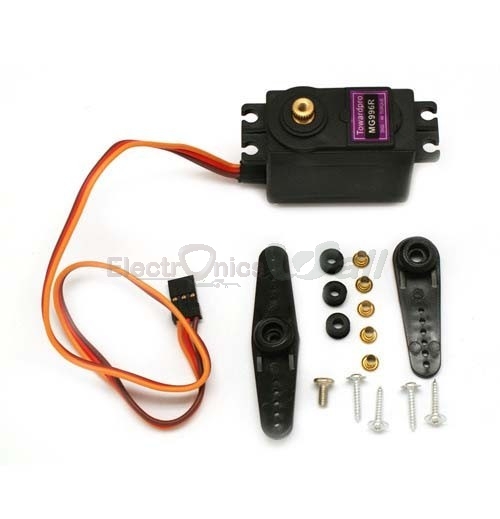

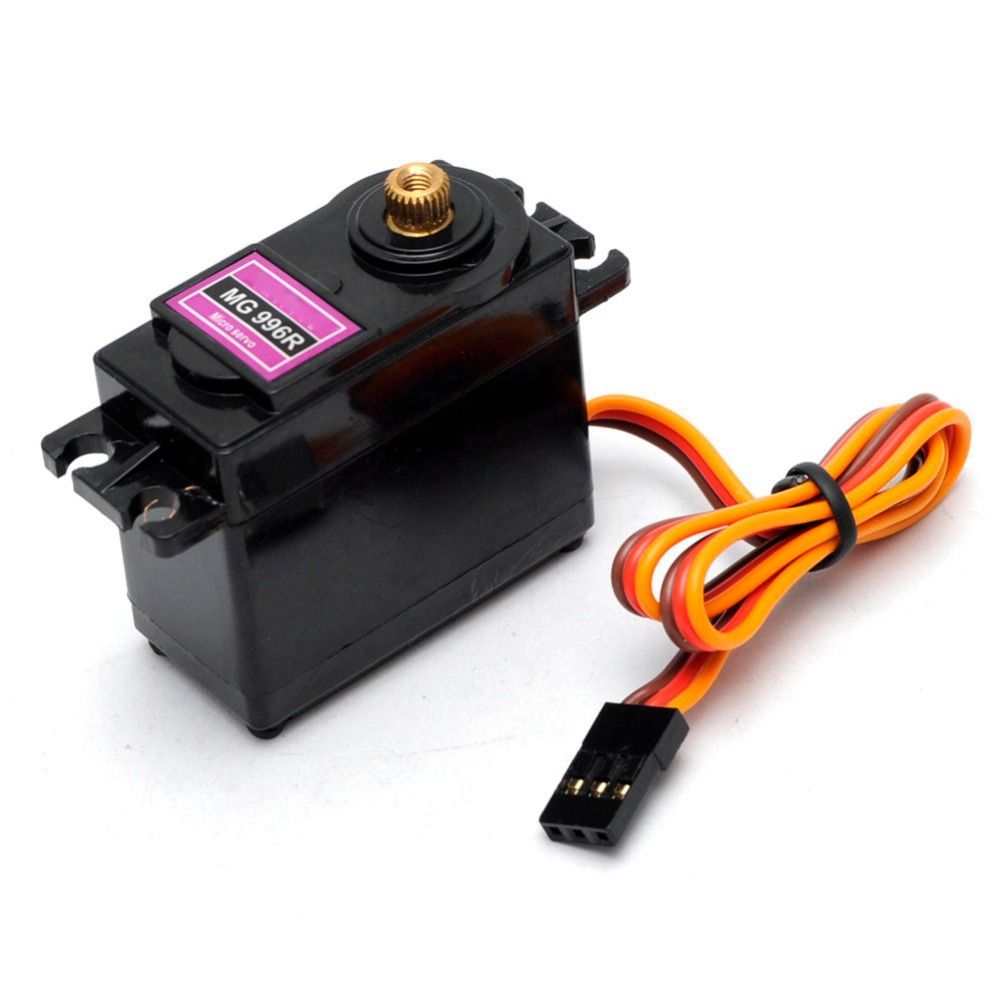

Tower Pro MG996R Metal Gear Micro Servo Motor 180 Degree
Servo
Product ID:
HF564435
Stock:
20 units available
Details:
The Tower Pro MG996R is an upgraded version of the MG995, designed for higher torque, better accurac...
The Tower Pro MG996R is an upgraded version of the MG995, designed for higher torque, better accuracy, and durability. It’s a standard-size, high-torque, 180° servo motor commonly used in robotics, RC vehicles, and automation projects.
🔹 Key Specifications (MG996R):
Operating Voltage: 4.8V – 7.2V DC
Torque:
~9.4 kg·cm at 4.8V
~11–12 kg·cm at 6V
Speed:
~0.20 sec/60° at 4.8V
~0.16 sec/60° at 6V
Rotation Range: ~180° (not continuous, not full 360°)
Gear Type: All-metal gears (stronger & longer lasting)
Motor Type: DC motor with potentiometer feedback
Weight: ~55 g
Control: PWM signal
Connector: 3-wire
Brown / Black → GND
Red → +V (4.8–6V, ideally external power supply for stable torque)
Orange / Yellow → Signal (PWM input)
🔹 Features:
Improved accuracy compared to MG995
Higher torque output, ideal for lifting or moving heavy loads
Compatible with Arduino, Raspberry Pi, and most servo controllers
Sturdy metal gear train with reduced wear
Standard mounting dimensions
🔹 Applications:
Robotics (arms, legs, humanoids, hexapods)
RC cars, planes, boats (steering, flaps, rudder)
CNC and automation projects
Pan-tilt camera gimbals
Servo-based robotic grippers
Read more
PKR 950.00
